Technical Specs

Technical Specs

Scroll To Right >>>

table-img-1 table-img-2 table-img-3 table-img-4 table-img-5

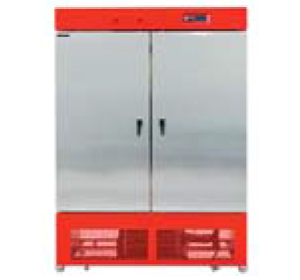

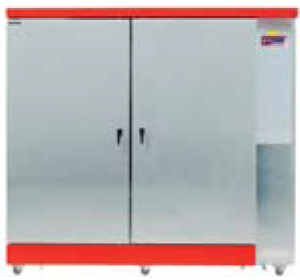

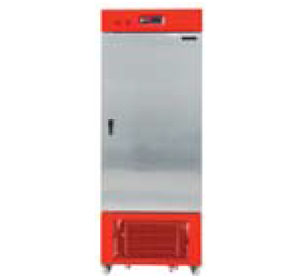

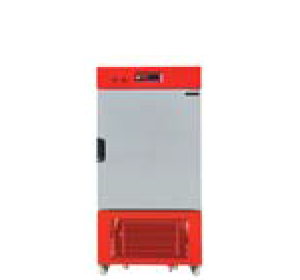

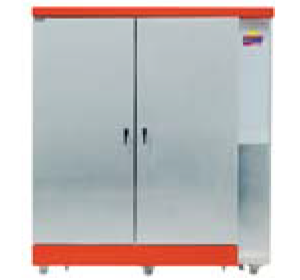

DESCRIPTION M200 M450 M900 M1400 M2000
table-icon-1
EXTERNAL DIMENSIONS (HxWxD) (mm)
1480 x 720 x 790 2030 x 760 x 1020 2030 x 1420 x 1020 2030 x 1780 x 1070 2070 x 2200 x 1230
table-icon-2
INTERNAL DIMENSIONS (HxWxD) (mm)
660 x 510 x 610 1230 x 560 x 610 1230 x 1220 x 610 1610 x 1320 x 660 1610 x 1700 x 740
table-icon-3
INTERNAL VOLUME (Liters)
205 420 915 1403 2025
table-icon-4
TEMPERATURE RANGE
20 – 50 ℃
table-icon-4
TEMPERATURE UNIFORMITY
± 2 ℃
table-icon-6
HUMIDITY RANGE
50 – 90 % RH
table-icon-6
HUMIDITY UNIFORMITY
± 5% RH
table-icon-7
SHELVING
up to 2 shelves up to 7 shelves up to 7 shelves up to 9 shelves up to 9 shelves
table-icon-8
WEIGHT
approx. 280kg approx. 380kg approx. 500kg approx. 600kg approx. 750kg
table-icon-9
ELECTRICAL CONNECTION
single-phase + neutral + earth, 240V AC, 5A 50Hz 3-phase + neutral + earth, 415V AC, 8A, 50Hz 3-phase + neutral + earth, 415V AC, 11A, 50Hz 3-phase + neutral + earth, 415V AC, 12A, 50Hz 3-phase + neutral + earth, 415V AC, 13A, 50Hz
** Other electrical supply options, capacity and temperature & humidity range are available upon request.
